Drive systems · Motors · Integrated actuators

Precision
in motion.

Engineering the drive systems, motors and integrated actuators behind the next generation of intelligent machines.

Preparing product view…

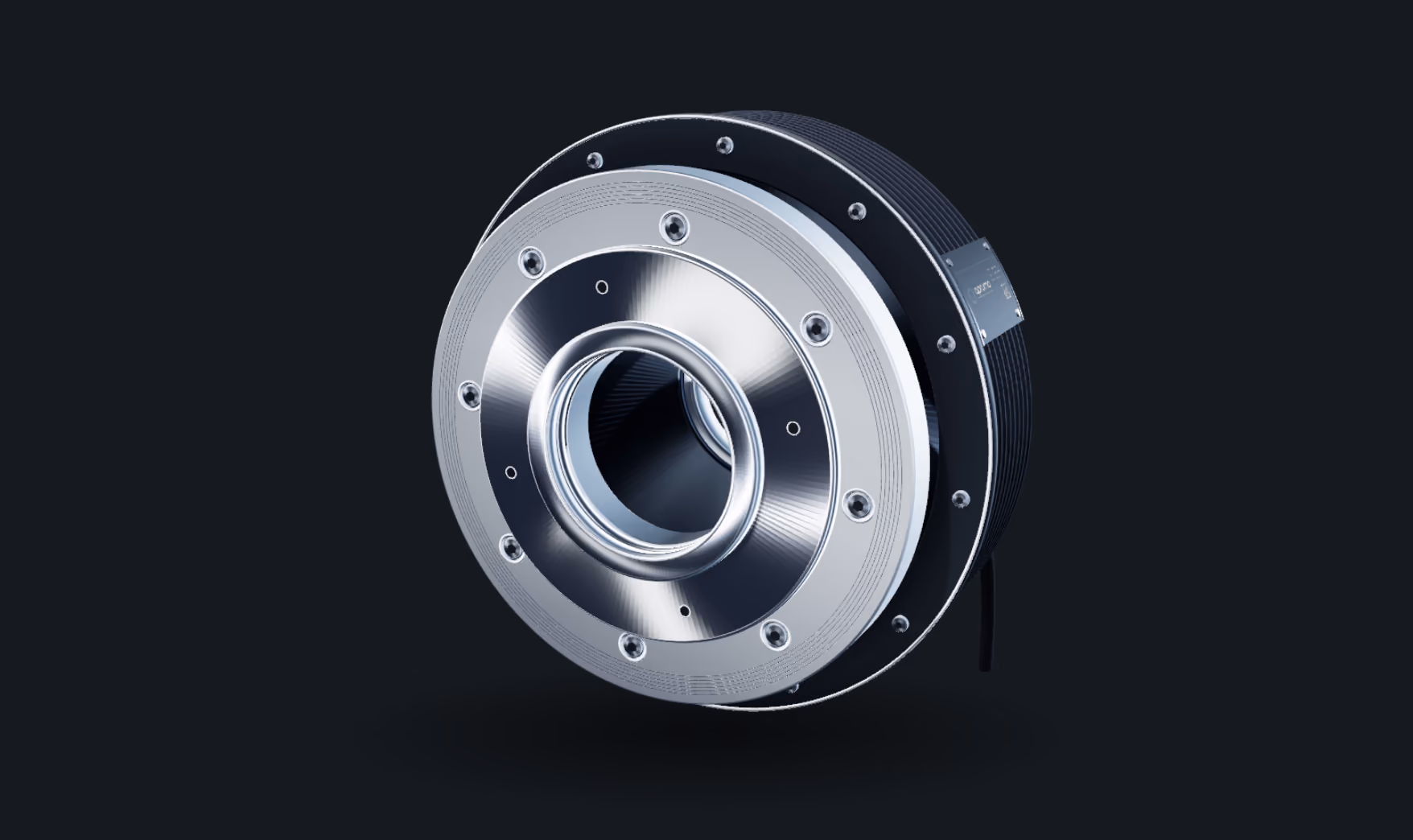

Scrolling separates the actuator into six stages: rear cover & connectors, finned housing, encoder board, stator & magnet rotor, output bearing, output flange.

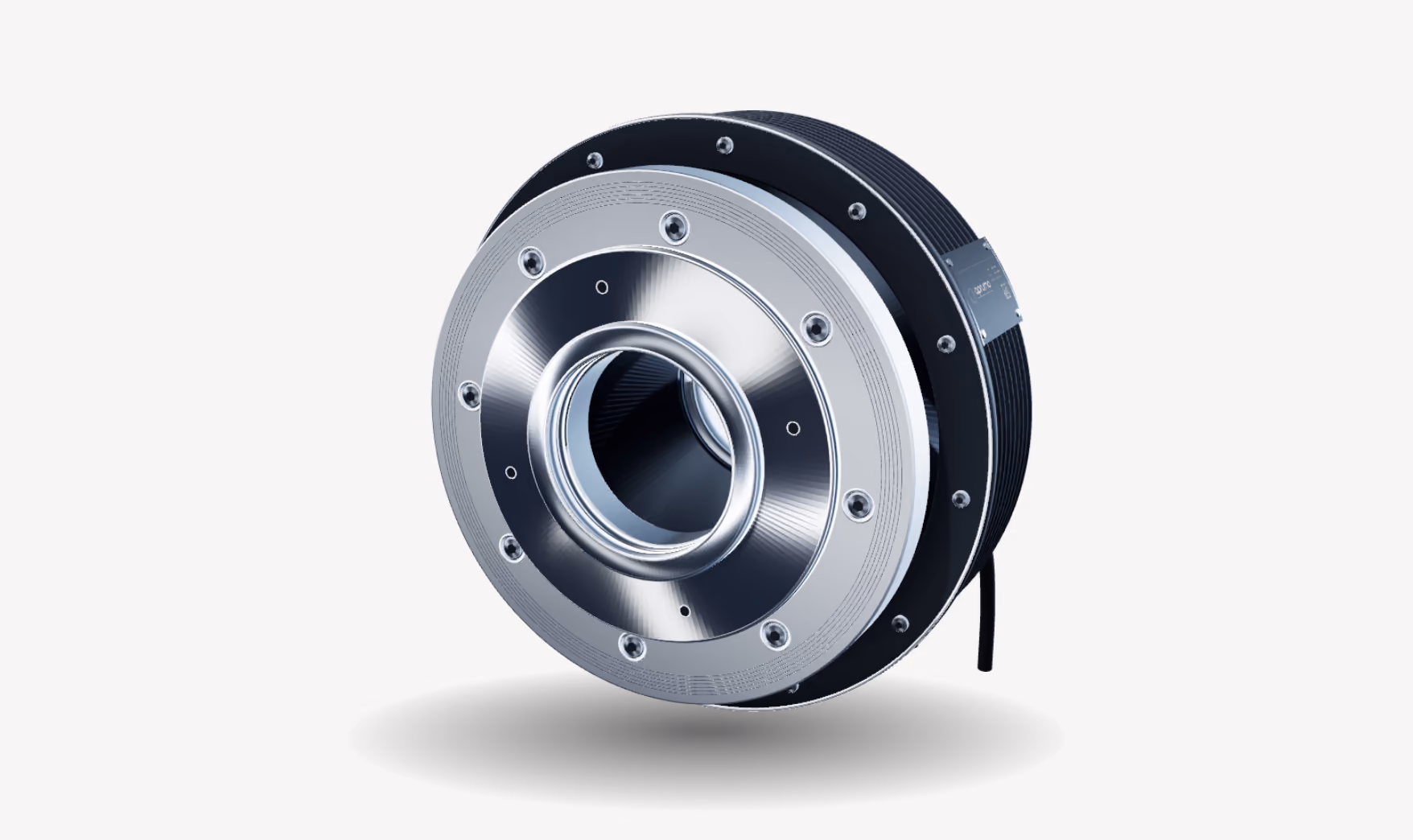

Integrated actuator*illustrative geometry

Inside the drive

Six stages on one axis.

Rear cover and connectors, housing, encoder, stator and magnet rotor, output bearing and flange: everything a joint needs, stacked along the axis it turns.

  1. Rear cover & connectors
  2. Finned housing
  3. Encoder board
  4. Stator & magnet rotor
  5. Output bearing
  6. Output flange

Nameplate: aprumo, precision drives and motion systems. TYPE QDD-H80. S/N 2026-0000. BATCH 2026-10. ILLUSTRATIVE GEOMETRY. The serial is a sample.

Motion systems

One platform. Eight architectures.

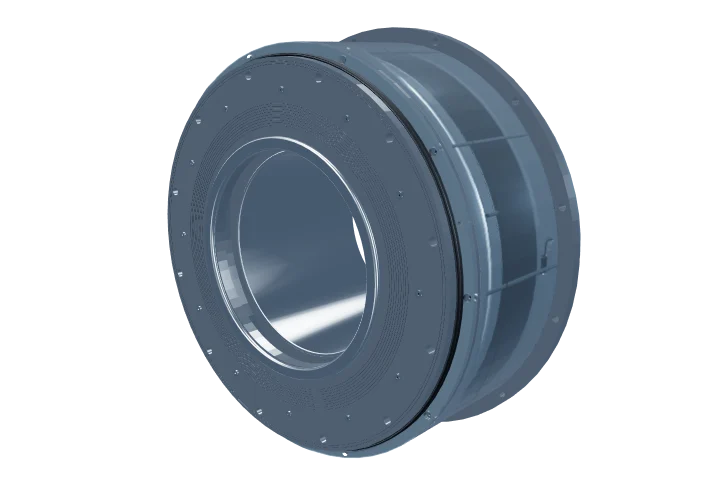

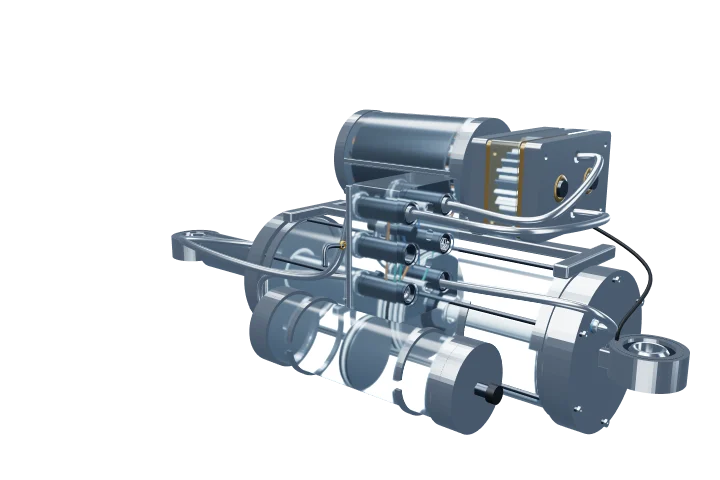

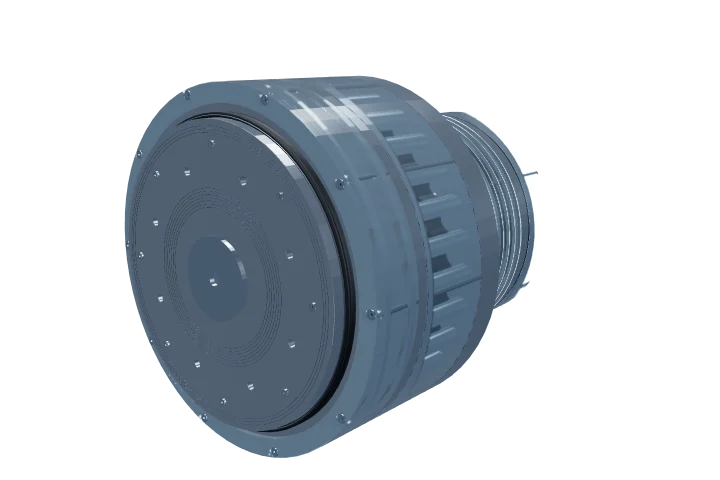

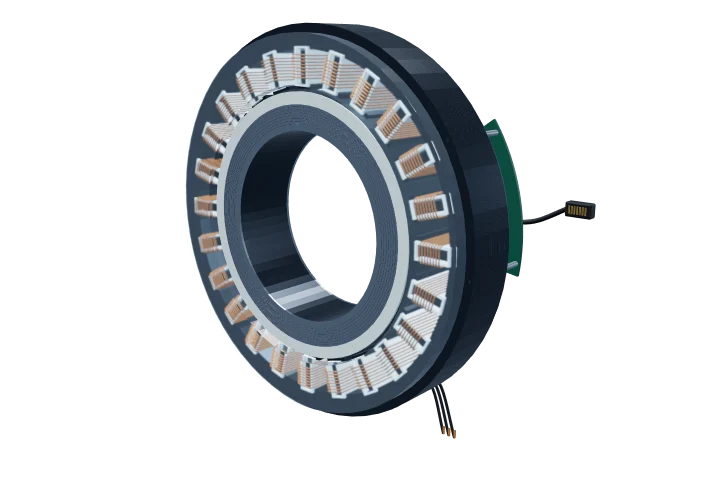

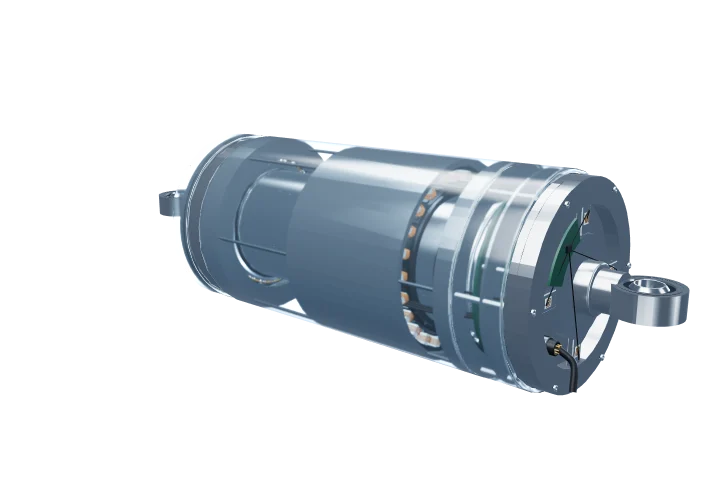

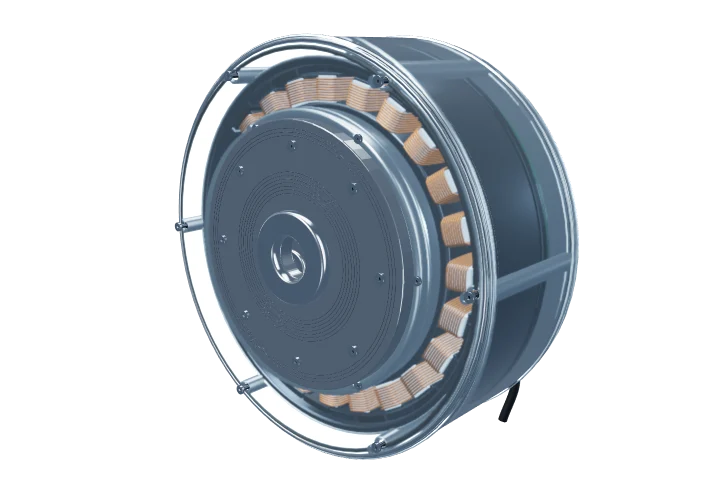

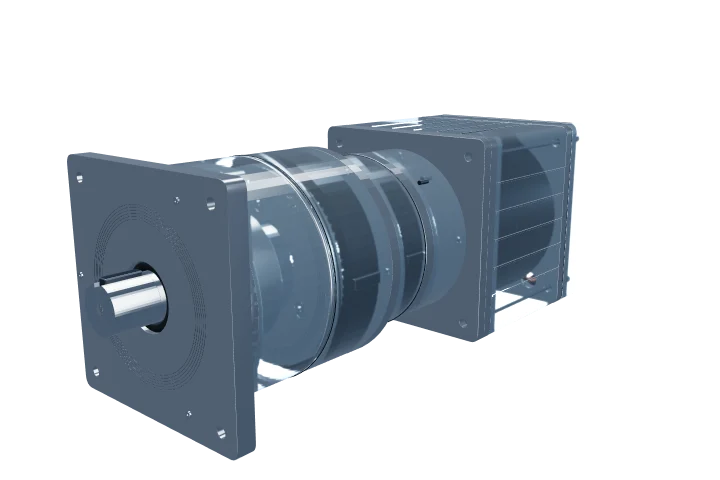

Geared, gearless and linear: eight drive architectures, each suited to a different kind of joint. Pick one to see how power reaches the output.

Hover to inspectTap to inspect · scroll to continue

APRUMO — Precision Drives & Motion Systems

01 · Geared rotary

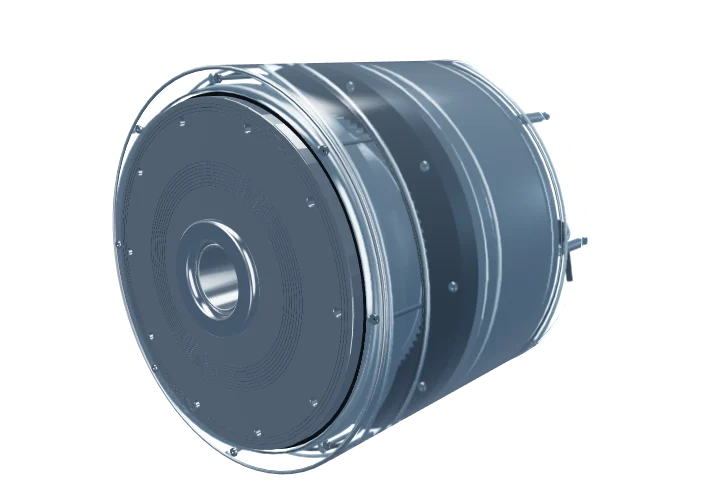

Strain-wave actuator

Integrated rotary joint

  1. Inverter
  2. PMSM rotor
  3. Wave generator
  4. Flexspline
  5. Output flange
Explore the architecture

Hover to inspectTap to inspect · scroll to continue

Humanoid & legged robotics · 1 / 4

Humanoid robot

Explore this machine
  1. APRUMO · DWG 01 · Humanoid robot · Illustrative, not to scale. Dimensions L and D. Marked drives: QDD · hip; Strain-wave · shoulder; Frameless · waist.
  2. APRUMO · DWG 02 · Wheeled quadruped · Illustrative, not to scale. Dimensions L and D. Marked drives: QDD · thigh; QDD · wheel.
  3. APRUMO · DWG 03 · Industrial robot arm · Illustrative, not to scale. Dimensions L and D. Marked drives: Cycloidal · J2; Planetary servo · J4; Strain-wave · J5.
  4. APRUMO · DWG 04 · Lower-limb exoskeleton · Illustrative, not to scale. Dimensions L and D. Marked drives: QDD · hip; QDD · knee; QDD · ankle.
  5. Section A-A · QDD hip drive · Illustrative (drawn on DWG 04 as the drive is pulled out).

Family assignments are illustrative; they do not assert a manufacturer's internal architecture, an APRUMO supply relationship or verified engineering suitability.

Proven

Three headings on the left, the actuator on the right, which take the focus one after another as you scroll (or follow a heading to go to its beat). Control testing: on a dynamometer bench the controller drives the actuator forward, holds it and reverses it under load, with illustrative readings of speed, torque, following error and a dial on the flange reading under one micron. Health monitoring: a data-acquisition module seats on the housing with an accelerometer on the output bearing and a temperature sensor at the winding; its casing turns to glass, and three illustrative graphs tell the story: a vibration spectrum whose outer-race peak is growing, an anomaly score crossing its threshold, and a health index projected to the failure threshold with the planned service some 14,000 hours ahead; predictive health is active and every unit has a test-data record. Plug and play, a design concept: an inspection drone, a heavy-lift quadrotor with a sensor gimbal, built from eight self-contained actuator modules across four architectures. First the modules float apart, each doing its own job; then the four rotor modules twist-lock onto the arms at once, the two landing-gear legs lock under the body and the gimbal onto the turret, the modules find each other and share one model; then it runs: the props spin up, it lifts off, folds its gear, glides with the gimbal aimed down, and sweeps down past the camera into the next section. It talks ROS 2, CAN-FD and EtherCAT, with setup in two days as published.

  1. On the test bench a dynamometer loads the output while the controller drives it forward, holds it and reverses it. The dial on the flange reads less than one micron (a thousandth of a millimetre).

    Speed
    0rpm
    Load torque
    0.0N·m
    Following error
    0.0arcsec
    Dial on the flange
    +0.00µm
    Position · command and measured
    Output position over the bench test: the command and the measured position.The output turns one full turn forward, holds, reverses seven tenths of a turn and holds again; the measured position follows the dashed command with a small lag.01timeturns
    Step response12 ms, no overshoot
    Step response of the position loop.A step command is followed without overshoot, settling in 12 ms, no overshoot.01
    Torque–speedlive
    The drive's torque–speed envelope with the live operating point.Peak and continuous torque against speed, to 60 rpm; the operating point moves along it as the test runs.2448rpmN·m
    Illustrative data · 1 µm = 0.001 mm
Preparing the film…
02 / The platformHardware · control · software

One platform,
from joint to fleet.

Precision drives, deterministic control and a software layer that keeps improving each machine, from first commissioning through its working life.

Section and end view of an illustrative integrated actuator, its rotor turning slowly. Callouts: mechanics, the reducer and cross-roller bearing; magnetics, the stator and magnets; drive, the inverter and windings; feedback, the encoder.
MECHANICS / MAGNETICS / DRIVE / FEEDBACK

Motors, transmissions, bearings, sensing and electronics developed as an integrated motion system.

An illustrative configuration console. Discover finds a host bridge on ROS 2, joints j1 and j2 on CAN-FD and joint j3 on EtherCAT; calibrate sets j1's offset, finds its encoder index and checks its direction; run puts j1 in position mode.
DEVELOPMENT INTERFACES: ROS 2 / CAN-FD / ETHERCAT

An SDK and interface layer intended to simplify discovery, configuration, calibration and robot integration.

Sim-to-real: a joint's simulated trace and its trace on the hardware, which closes onto the simulated one over four iterations. The learned policy, an outer loop, reaches deterministic real-time control only through bounded commands; the safety path runs separately to the actuator. Illustrative, not measured data.
SIM-TO-REAL / COMMISSIONING / OUTER-LOOP POLICIES

Simulation-to-hardware workflows, assisted commissioning and higher-level adaptive policies—with bounded commands to deterministic control.

An illustrative digital birth record: the unit's serial, build, calibration and firmware, its calibration curve inside the tolerance band and its end-of-line, calibration and burn-in stamps, all passed; beside it, the unit's health over its life, restored by a service, with a predicted continuation toward reuse.
TELEMETRY / DIGITAL BIRTH RECORD / SERVICE & REUSE

Serial-linked calibration and test data form the foundation for diagnostics, digital twins, service history and predictive health.

Deterministic at the core

AI and reinforcement learning support design, commissioning and higher-level adaptation. Real-time motion control and the safety path remain separate.

Let's engineer what comes next.Back to top ↑

Your machine.
Our next challenge.

Start with the application: load, duty cycle, space, environment and control interfaces.
